Description

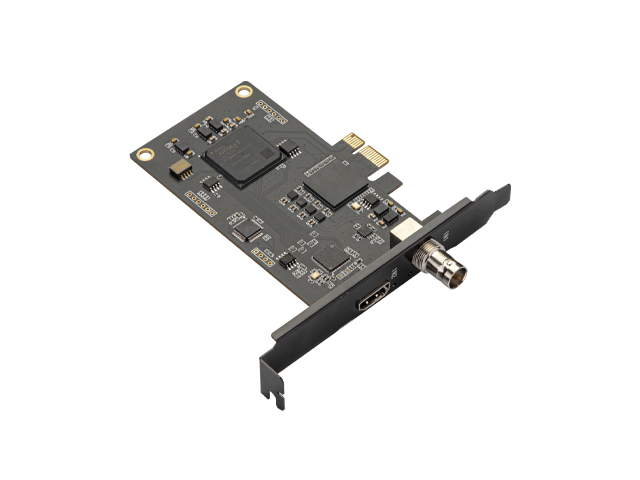

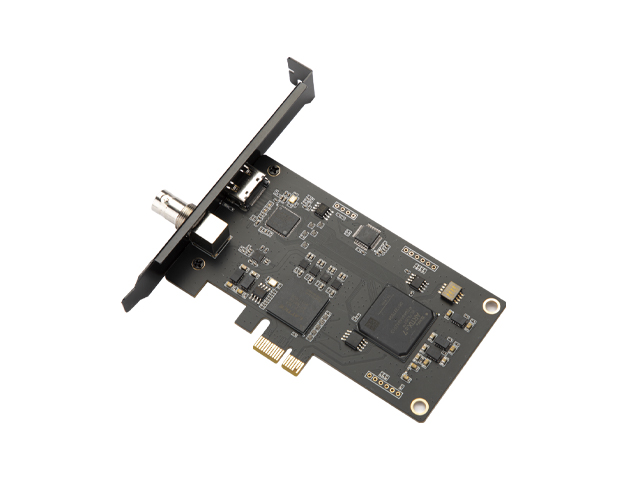

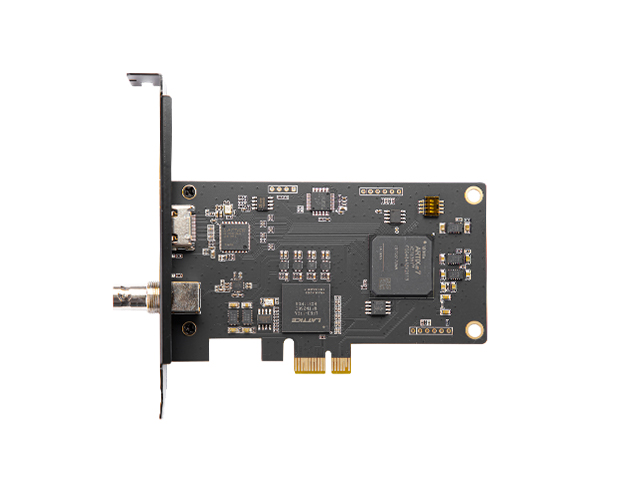

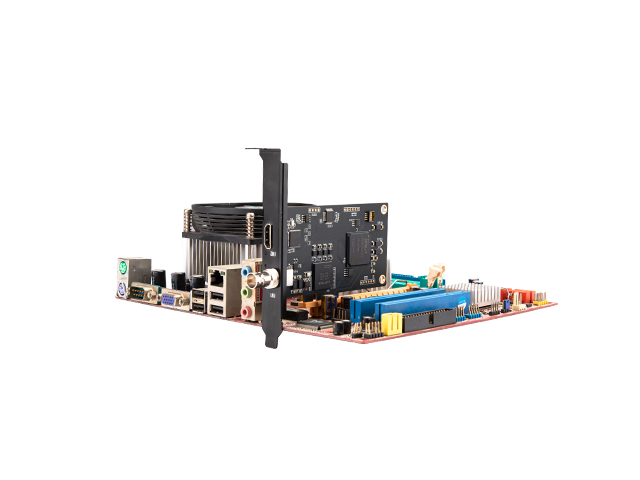

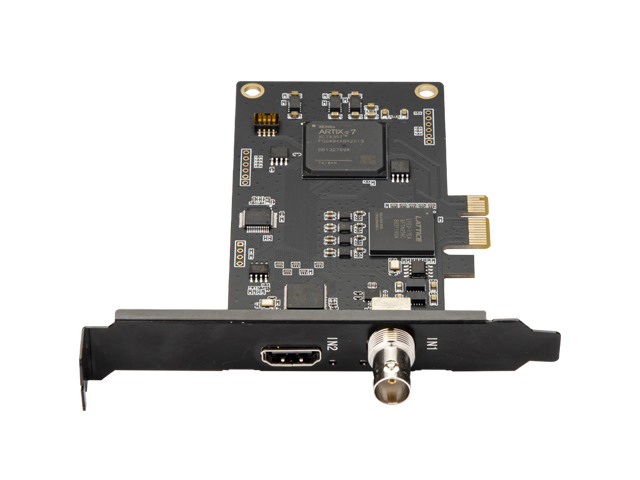

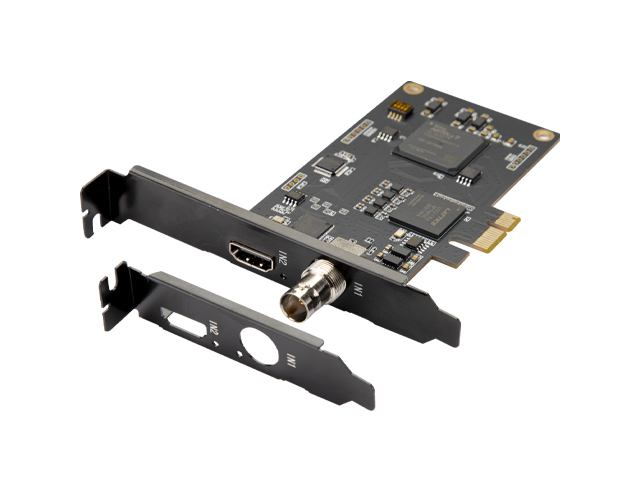

• Product name: SDI/HDMI 2-channel built-in capture card
• Size: 113*69mm
• Host interface: PCI-Express*1
• Video input interface: 1 HDMI+1 SDI input
• Audio capture: 1 channel HDNI + 1 channel SDI embedded audio capture
• Input format: HDMI1.4 3GSDI
• Output color space: YUY2
• Hardware de-interlacing: support 1080i hardware de-interlacing,
• 3D noise reduction algorithm, clearer picture
• Multi-stream output: support multi-stream output
with different resolutions
• Acquisition frame rate: support 24, 25, 50, 60Hz
• Acquisition resolution: 1920*1080P@60/50fps
                   1920*1080P@30/25/24fps
                   1920*1080i@60/50fps
                    1280*720P@60/50fps
                    1024*768P@60fps
                    800*600P@60fps
                    640* 480P@60fps
                    720* 480P@60fps
                    720*576P@50fps
System Requirements
• Windows XP/7/8.1/10 32bit/64bit
• Compatible software: Windows Media Encoder,
                       Adobe Flash Media Live Encoder,
                       Real Producer Plus, VLC, Wirecast VMIX..
