4 lanes of PCI-e designated,Support for SAS 2.1 and SAS 3.0 standards,Support PCI Express 3.0,Data rate up to 12Gbps,32Gbps,Convert M2 PCIe SSD connection to SFF-8639 connection cable.
ModelIO-M2TO8639
Input InterfaceM.2
Output InterfaceSFF-8639
Motherboard SlotM.2
Transmission Rate32Gbps
Auxiliary Accessoriesmounting screws
Product Size22x60mm,50cm
Feature
• 4 lanes of PCI-e designated
• Support for SAS 2.1 and SAS 3.0 standards
• Support PCI Express 3.0
• Data rate up to 12Gbps,32Gbps
• Convert M2 PCIe SSD connection to SFF-8639 connection cable
• No drivers required for this converter
Specifications
• PCI Express Card Electromechanical Spec. Rev. 2.0
• PCI Express M.2 Spec. Rev. 0.7, Ver. 1.0
• Compliant with SFF-8639 Specification Rev. 2.0
SFF-8639 connector
• M2(PCI-E Gen x4) to SFF-8639(w/15pin sata power) Data Cable
• M2 Dimension: 2260
• RoHS compliant
Operating System Support
• Windows
• UEFI 2.3.1 or later
Package Contents

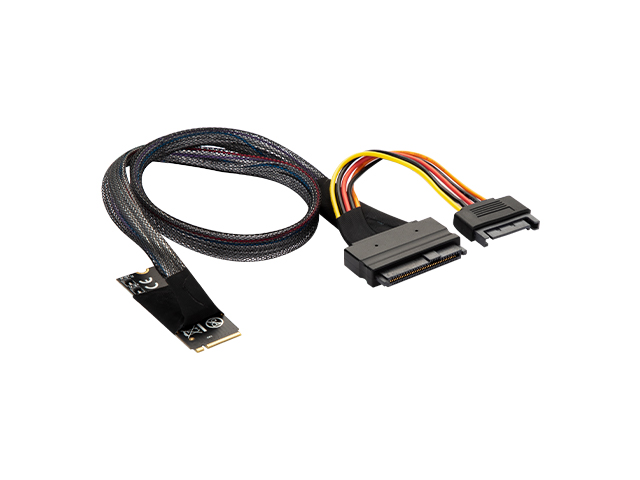

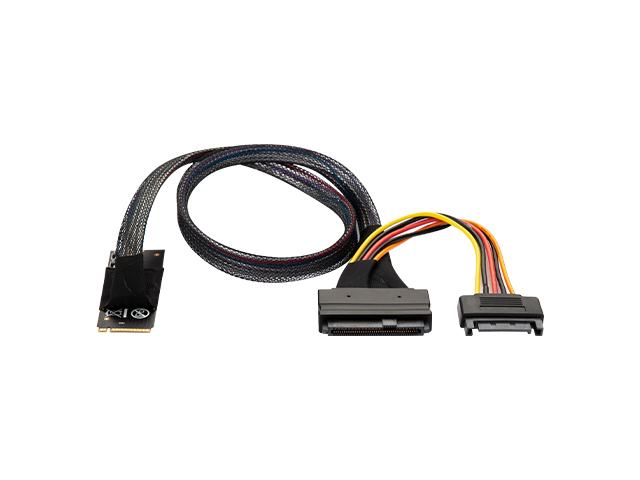

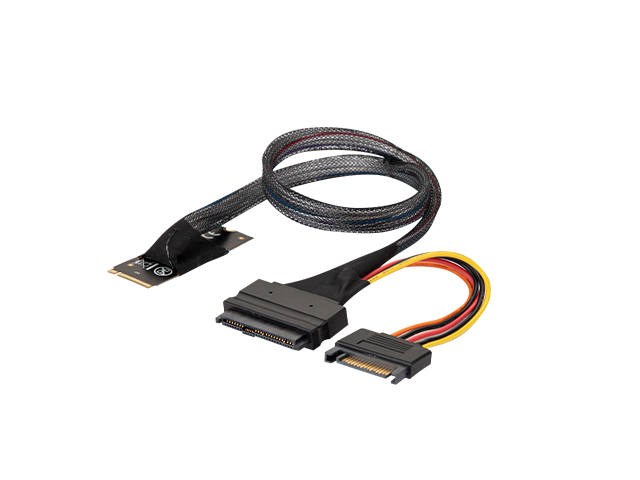

• 1 x M.2 M-key to U.2 SFF-8639 Cable with 15 Pin Female SATA Connector
• 1 x User Manual
• 1 x mounting screws
*M2 PCIe SSD and M2 SATA SSD use the same type of connectors. The adapter is designed to work on only on M2 connectors that are designed for M2 PCIe SSD
