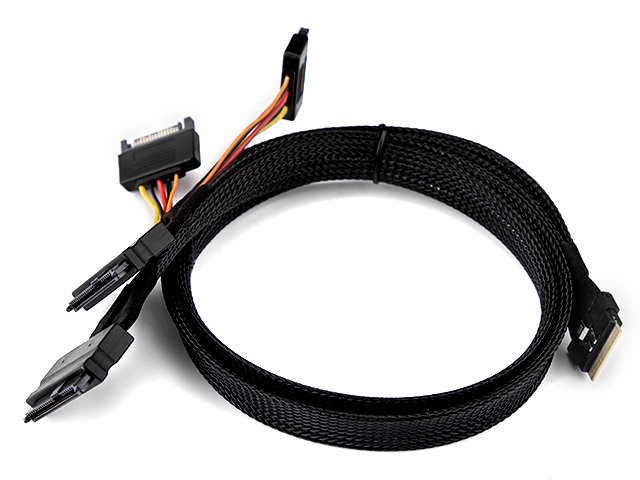

Smaller size connectors and cables save space on the equipment.Provide four-channel signal transmission according to industry standards.Compliant with SAS3.0, SlimSAS SFF-8654 specification.
ModelIO-CAB865439
Input InterfaceSLim Line SAS（8654）
Output Interface8639
Motherboard Slot
Transmission Rate
Auxiliary Accessories
Product Size0.65M
Features
• Smaller size connectors and cables save space on the equipment.
• Provide four-channel signal transmission according to industry standards.
• Compliant with SAS3.0, SlimSAS SFF-8654 specification.

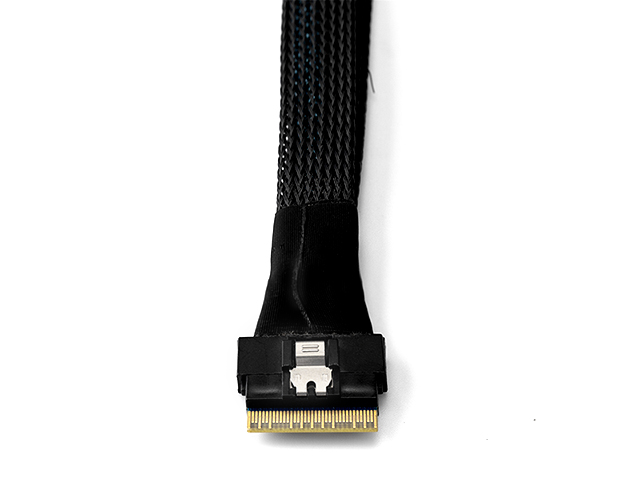

• Upstream: SLim Line SAS（8654），SlimSAS 4i (SFF-8654 38P) Plug

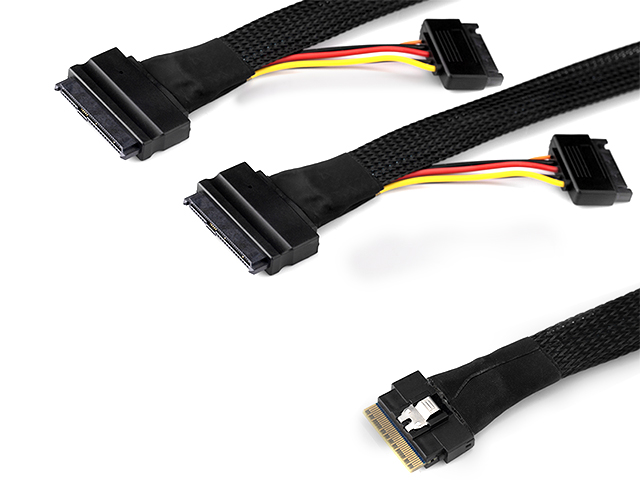

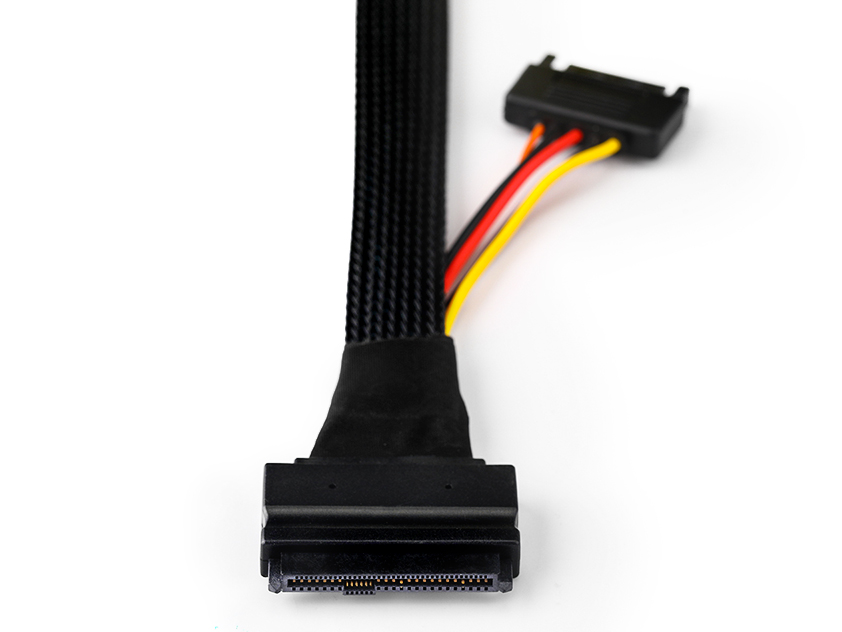

• Downstream: U.2 Plug (SFF-8639 68P) Receptacle Port
• Power: SATA 15pin Female Connector
• RoHS2.0: Compliant
• Length:0.65M
Applications
• Data/Communications
• Workstations
• Rack-mount server
• Servers
• Storage rack
