Description

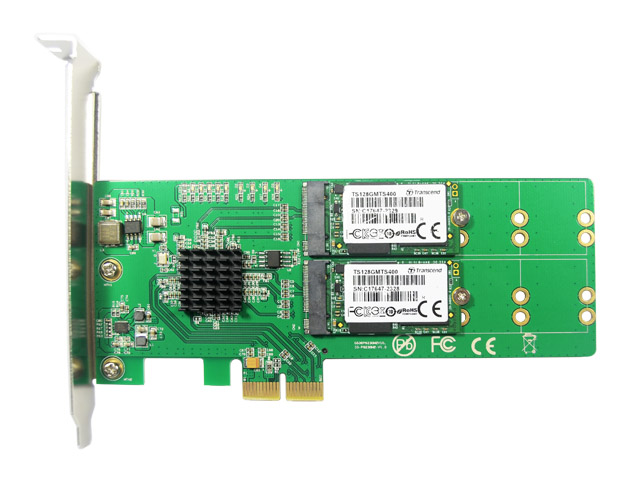

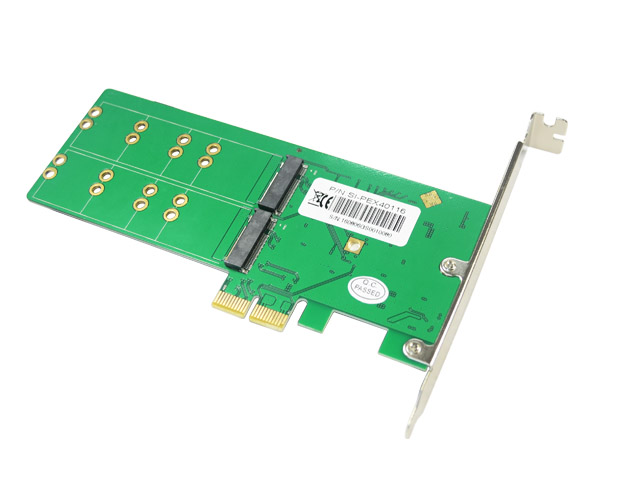

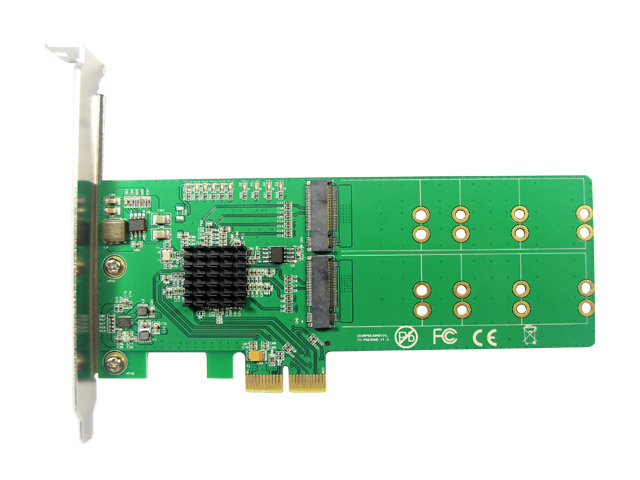

•The PCI Express card expands your PC by four M.2 NGFF slots.  You can connect up to four M.2 NGFF modules in format 2280, 2260, 2242 and 2230.
Features
• Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0a
• Fully compliant with Serial ATA specifications 3.0
• Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
• Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
• PCI Express M.2 specification 1.0
• Supports Native Command Queue (NCQ)
• Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
• Data transfer rate up to 6 Gb/s
System Requirement
•Require an empty PCIex2or x4 or x8 or x16 slot in computer
•Windows® 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux

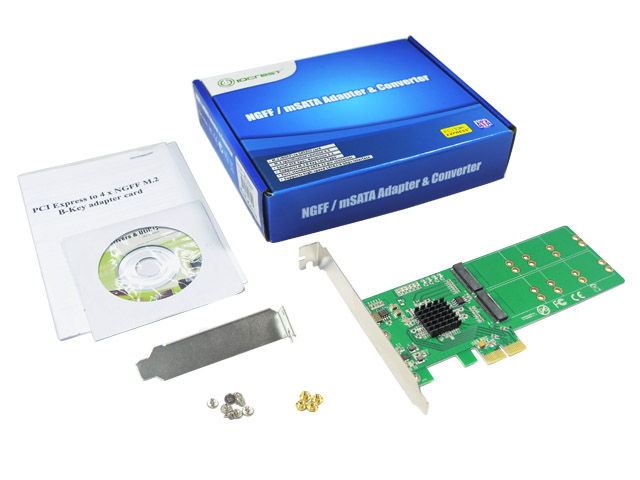

Package Content
• 1 x PCI Express to 4 x NGFF M.2 Key-B adapter card
• 1 x User Manual
• 1 x Software Driver CD
• 8 x NGFF M.2 SSD mounting screws
• 1 x Low profile bracket
