Compliant with Serial ATA Specification 3.1,Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps,Hot plug and Hot Swap.
Input InterfaceMINI PCIE
Motherboard SlotMINI PCIE
Auxiliary AccessoriesSATA Cable
•Compliant with Serial ATA Specification 3.1
•Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
•Hot plug and Hot Swap.
•Supports Native Command Queue (NCQ)
•Supports AHCI 1.0 programming interface registers for the SATA controller
•Supports aggressive power management
•Supports error reporting ,recovery and correction
•Supports Message Signaled Interrupt (MSI)
•Supports Programmable transmitter signal levels
•Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
•Supports Port Multiplier FIS based switching or command based switching.
•Supports 4 SATA devices
•Supports Partial and Slumber Power Management states
•Supports Staggered Spin-up
•Compatible with SATA 6G, 3G and 1.5G Hard Drives.
Note: Not Supported RAID on PM

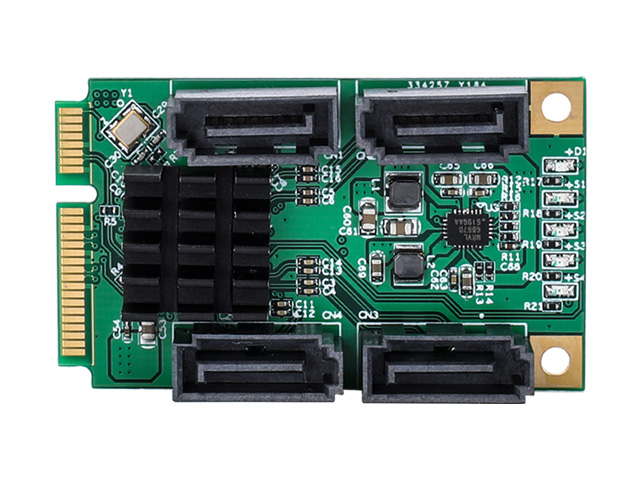

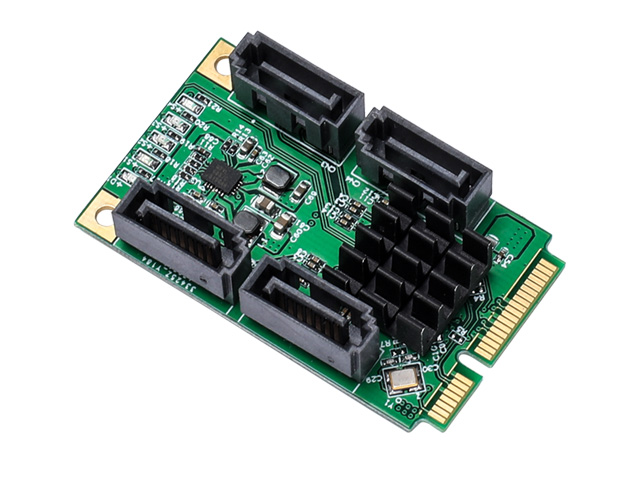

•1 x SATA III (6Gbps) miniPCI-Express Controller Card
•1 x User Manual
•4 x SATA Cable
•1 x Driver CD
•Supports Windows® XP/Vista/7/8/8.1/10 Server 2003/2008 R2, Linux 2.6.x and above
