Industry Specifications Compliance:PCI Express Base Specification Rev. 2.0,PCI Express Card Electromechanical Rev. 2.0,Serial ATA AHCI Spec. Rev.1.3,Serial ATA Revision 3.2.
ModelIO-PCE1061R-2IR
Input InterfacePCIe
Output InterfaceSATA
Motherboard SlotPCIe
Transmission Rate6Gbps
Auxiliary AccessoriesLow profile bracket,SATA Cable
Product Size65.3x68.5mm
Features
Industry Specifications Compliance:
PCI Express Base Specification Rev. 2.0
PCI Express Card Electromechanical Rev. 2.0
Serial ATA AHCI Spec. Rev.1.3
Serial ATA Revision 3.2
Serial ATA Features
Supports 2 ports Serial ATA PHY
1.5Gbps, 3.0Gbps and 6.0Gbps speed negotiation
SATA PHY 1i/1m/2i/2m/3i
Supports AHCI and IDE programming interface
Supports Native Command Queue (NCQ)
Supports Port Multiplier command based switching
Embedded hardware RAID engine
Supports RAID0, RAID1, SPAN
RAID mode changeable, controlled via the setting GUI utility
RAID0 high performance for the data transmission
Supports S.M.A.R.T feature
Supports automatic rebuild
Supports high performance off-line rebuild
Supports background rebuild
Package Contents
1 x User Manual

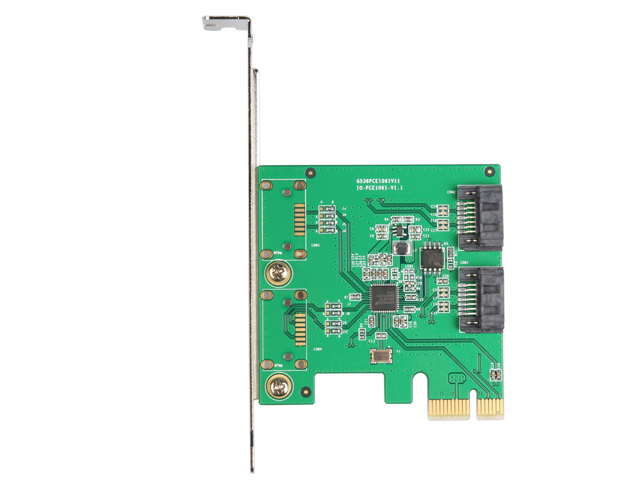

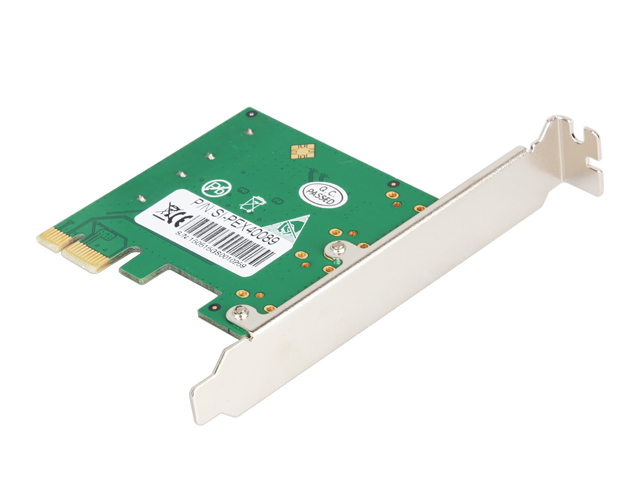

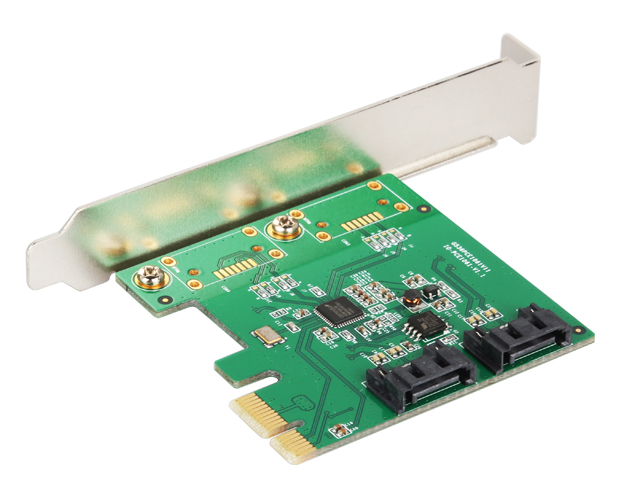

1 x SATA III (6Gbps) 2-port PCI-Express Controller RAID Card
1 x SATA Cable
PS: eSATA Card Without SATA Cable
System Requirements
Windows® 8.1,7 (32 / 64 bit) / Vista / Server 2012 / 2008,Linux
