Supports PCIe 1.0 and PCIe 2.0 motherboard,Compliant with 10Gbps PCI Express 2.0,Fully compliant with Serial ATA specifications 3.0,Supports SATA III transfer rate of 6.0Gbps,Supports SATA III & SATA II & SATA I mSATA SSD.
ModelIO-PCE9230-4MR
Input InterfacePCIe
Output InterfaceMSATA
Motherboard SlotPCIe
Transmission Rate6Gbps
Auxiliary AccessoriesScrews(mSATA) ,Low Profile Bracket
Product Size
Features
• Supports PCIe 1.0 and PCIe 2.0 motherboard
• Compliant with 10Gbps PCI Express 2.0
• Fully compliant with Serial ATA specifications 3.0
• Supports SATA III transfer rate of 6.0Gbps
• Supports SATA III & SATA II & SATA I mSATA SSD
• Supports Native Command Queuing (NCQ)
• Supports ATA and ATAPI commands
• Supports Hardware RAID 0, RAID 1, RAID 10 modes to mSATA SSD
• mSATA SSD LED indication
• Require an empty PCIe x2 or x4 or x8 or x16 slot in computer
• Compatible with SATA 6G, 3G and 1.5G Hard Drives
System Requirements
• Windows 2000/XP/2003/2008/Vista/7/8/8.1/10
• Linux, MAC OS

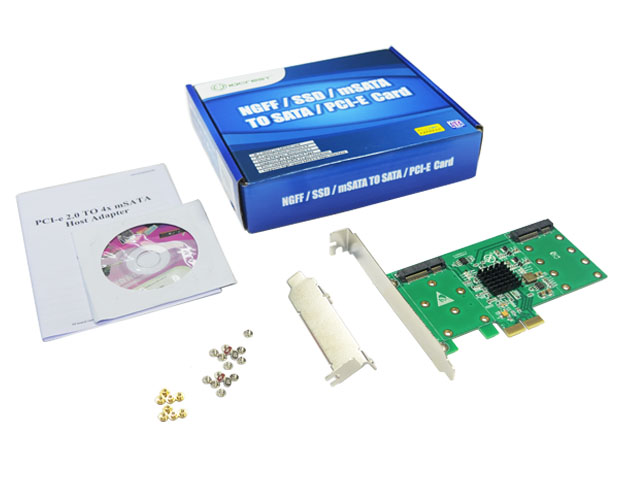

Package Contents
1 × PCI-e 2.0 TO 4x mSATA Host Adapter
1 × User Manual
1 × CD
16 × Screws(mSATA)

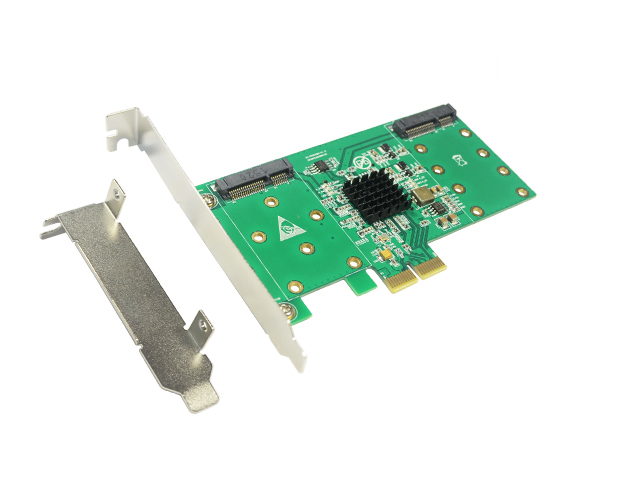

1 x Low Profile Bracket
Note: Contents may vary depending on country/market
