Features & Specifications
As1351 is a versatile high-performance and low power USB 3.1 to SATA controller Adapter.
Compliant with USB3.1 Gen1
Compliant with USB3.1 Specification Revision1.0
Compliant with USB Specification Revision 2.0
Support USB Super-Speed Plus, USB Super-Speed, High-Speed and Full-Speed Operation
Support USB Mass Storage Class, Bulk-Only Transport Specification Revision 1.3
Support USB Attached SCSI Protocol Specification Revision 1.0
Compliant with Serial ATA Specification Revision 3.2
Serial ATA bus up to 6Gbps Signal bandwidth
Support Spread Spectrum Control of USB3.0 and SATA interface to improve the EMI performance
Support ATA/ATAPI Packet Command Set
Support ATA/ATAPI LBA48 addressing mode
Support SPI NVRAM for Vender Specific Application of USB Device Controller
Support programmable PWMs
Integrated two internal voltage regulator for IO power and Core
Windows Server 2003, 2008,2012
Windows 2000/ME, XP, Vista, 7, 8
Linux, and Mac OS 10.3 or later version

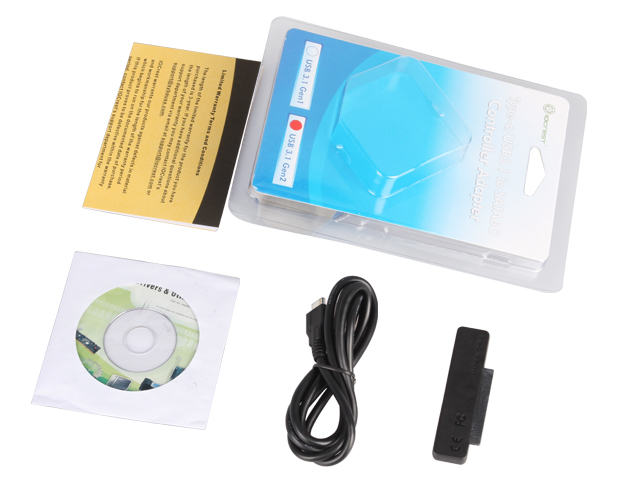

1 x USB3.1 to SATA Adapter
1 x User Manual
1 x USB3.1 Cable
Note: Contents may vary depending on country and market.
Windows will automatically detect and install the drivers for the USB3.1 to SATA Cable.
Note: This device is plug-and-play, so no driver is needed.
