Features
•Integrated 10/100/1000M transceiver
•Compliant with USB3.1 Gen1
•Supports USB 3.1,3.0, 2.0, and 1.1
•Supports CDC-ECM
•Supports LPM (Link Power Management)
•Supports pair swap/polarity/skew correction
•Crossover Detection & Auto-Correction
•Supports Wake-On-LAN and ‘RealWoW!’
•Supports power down/link down power saving
•Supports hardware CRC (Cyclic Redundancy Check) function
IEEE
•Supports Full Duplex flow control (IEEE 802.3x)
•Fully compliant with IEEE 802.3 and IEEE 802.3u
•Supports IEEE 802.1P Layer 2 Priority Encoding
•Supports IEEE 802.1Q VLAN tagging
•Supports IEEE 802.3az-2010 (EEE)
•Microsoft AOAC (Always On Always Connected)
•Supports 16-set 128-byte Wake-Up Frame pattern exact matching
•Supports link change wake up
•Supports Microsoft WPD (Wake Packet Detection)
•Supports Protocol Offload (ARP & NS)
•Intel CPPM (Converged Platform Power Management)
•Supports L1 with 3ms BESL (USB 2.0)
•Dynamic LTM messaging (USB 3.0)
•Supports U1/U2 (USB 3.0)
•Supports selective suspend

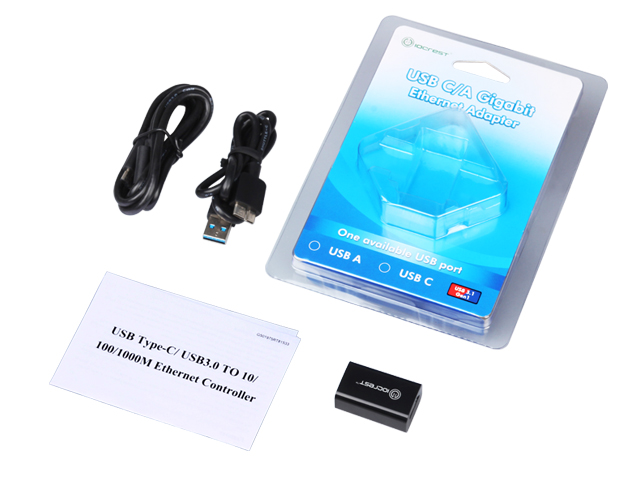

Package Contents

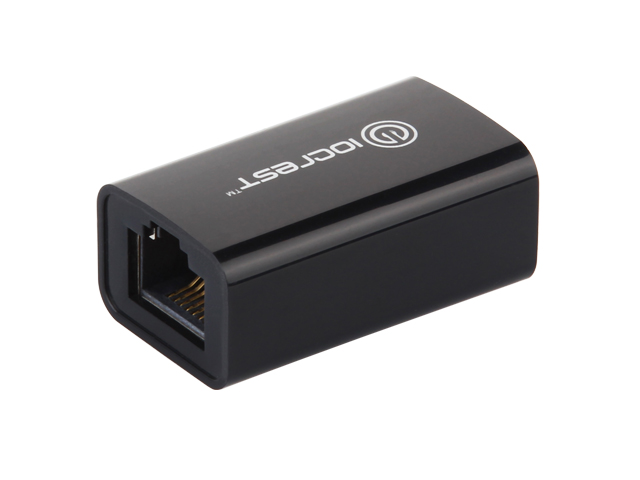

•1x USB 3.0 Ethernet Adapter
•1x Quick Installation Guide

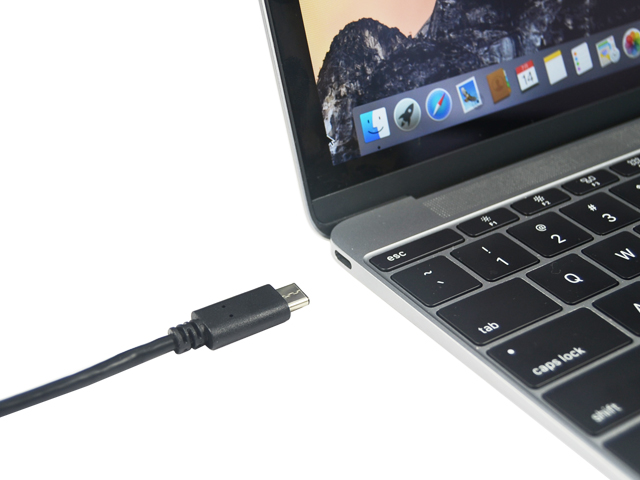

•1x USB Type-C Cable
System Requirements
•Windows Server 2003,2008, 2012, XP, Vista, 7, 8 32 and 64 bit
•Linux, and Mac
•One available USB port
