Features
• Integrated 10/100/1000M transceiver
• Supports USB 3.0, 2.0, and 1.1
• Supports CDC-ECM
• Supports LPM (Link Power Management)
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports Wake-On-LAN and ‘RealWoW!’
• Supports power down/link down power saving
• Supports hardware CRC (Cyclic Redundancy Check) function
IEEE
• Supports Full Duplex flow control (IEEE 802.3x)
• Fully compliant with IEEE 802.3 and IEEE 802.3u
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
Microsoft AOAC (Always On Always Connected)
• Supports 16-set 128-byte Wake-Up Frame pattern exact matching
• Supports link change wake up
• Supports Microsoft WPD (Wake Packet Detection)
• Supports Protocol Offload (ARP & NS)
Intel CPPM (Converged Platform Power Management)
• Supports L1 with 3ms BESL (USB 2.0)
• Dynamic LTM messaging (USB 3.0)
• Supports U1/U2 (USB 3.0)
• Supports selective suspend
Package Contents

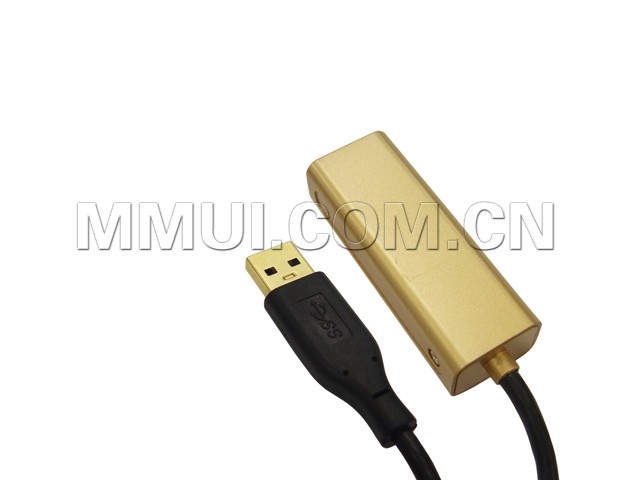

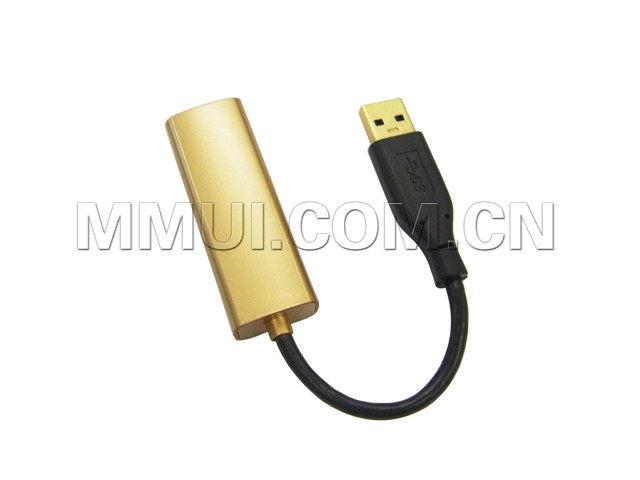

• 1x USB 3.0 Ethernet Adapter
• 1x Quick Installation Guide
System Requirements
• Windows 2003, XP , Vista ,2008_32bit and Windows7/8,2012
• Mac . Linux
• One available USB port
