Feature

•Three IEEE Std 1394b Fully Compliant Cable

•Fully Compliant With PCI Express Base Specification, Revision 1.1

•Fully Supports Provisions of IEEE Std P1394b-2002

•Fully Compliant With 1394 Open Host Controller Interface (OHCI) Specification,Revision 1.1 and Revision 1.2 Draft .

•Works with various types of 1394 devices including DV camcorders, hard disk drives, removable drives, CD-RWs, DVD-ROMs and other 1394 audio/video devices.

•Fully RoHS compliant .

•Fully Compliant With Provisions of IEEE Std 1394-1995 for a High-Performance Serial Bus and •IEEE Std 1394a-2000 .

Specifications

•Bus Type:Mini PCI-Express

•Chipset ID:Texas-INSTRUMENTS-XIO2213B

•Number of Ports:2-Port 1394b+1-Port 1394a

•Transfer Rate：Of 100/200/400/800 Mbps

•Dimensions：30（W）x 52（L）mm

•Operating Temperature: 0°C to 70°C

•Storage Temperature: -20°C to 100°C

•OS Compatibility：Windows /XP/2003/Vista/7/8/8.1

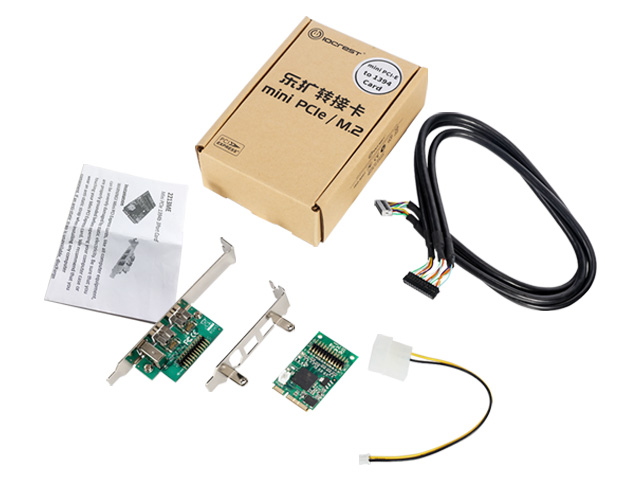

Accessories

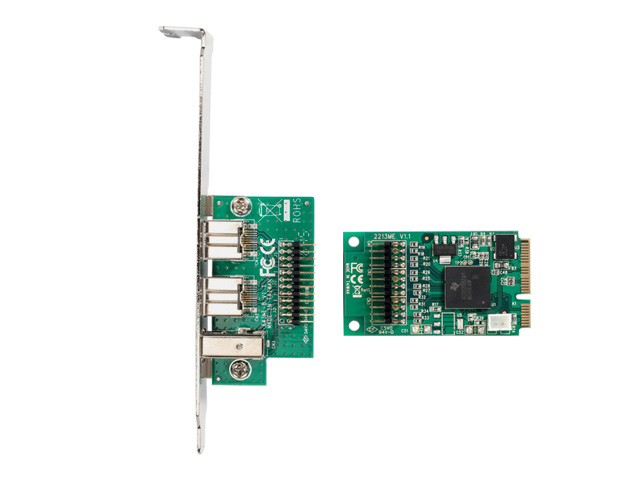

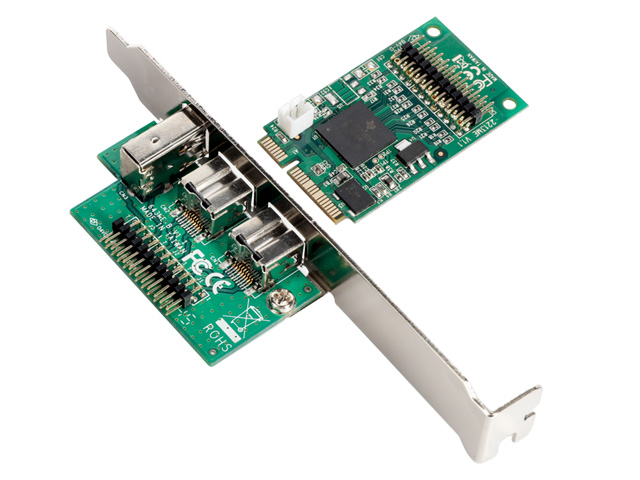

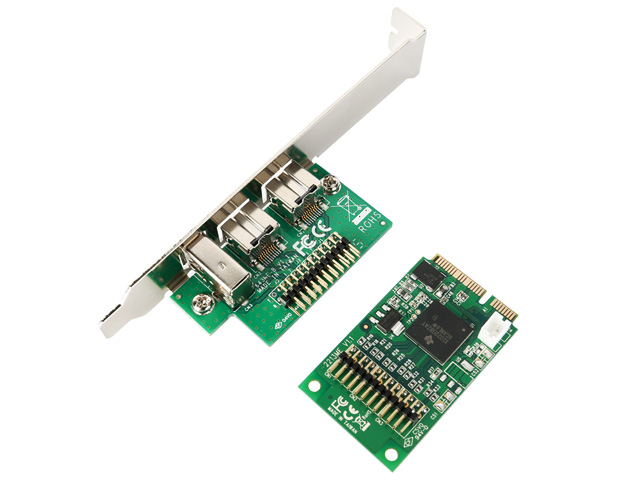

1 x Mini PCI Express card

1 x Cable

1 x Instruction Manual
