Mini PCI Express, Rev. 1.2,Supports one lane of PCI Express.Complies with PCI Express Base Specification Revision 3.1a.Supports PCIe link layer power saving mode.Supports 2 SATA port.
ModelIO-MPE40150
Input InterfaceM.2
Output InterfaceSATA
Motherboard SlotM.2
Transmission Rate6Gbps
Auxiliary AccessoriesSATA Cable,Driver CD

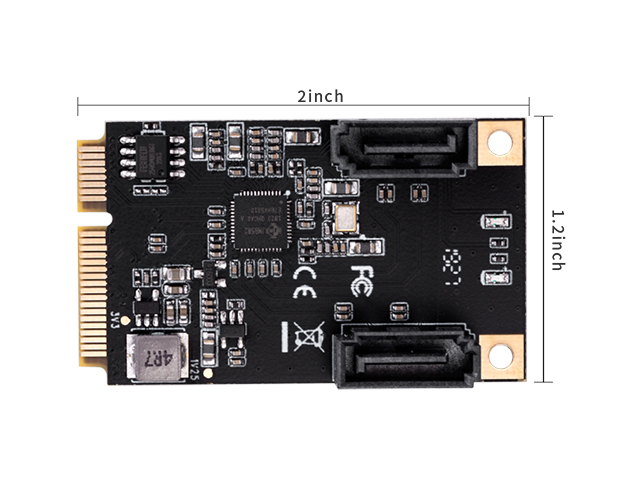

Product Size50x30mm
Features
• Mini PCI Express, Rev. 1.2
• Supports one lane of PCI Express.
• Complies with PCI Express Base Specification Revision 3.1a.
• Supports PCIe link layer power saving mode.
• Supports 2 SATA port.
• Complies with SATA Specification Revision 3.2.
• Supports command-based and FIS-based for Port Multiplier.
• Supports AHCI mode and IDE programming interface.
• Supports Native Command Queue (NCQ).
• Supports SATA link power saving mode (partial and slumber)
• Supports SATA plug-in detection capable.
• Supports drive power control and staggered spin-up.
• Supports SATA Partial / Slumber power management state.
System Requirements
• Windows 7 (X86/X64)
• Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)
• Linux-base OS
• UEFI
Package Contents

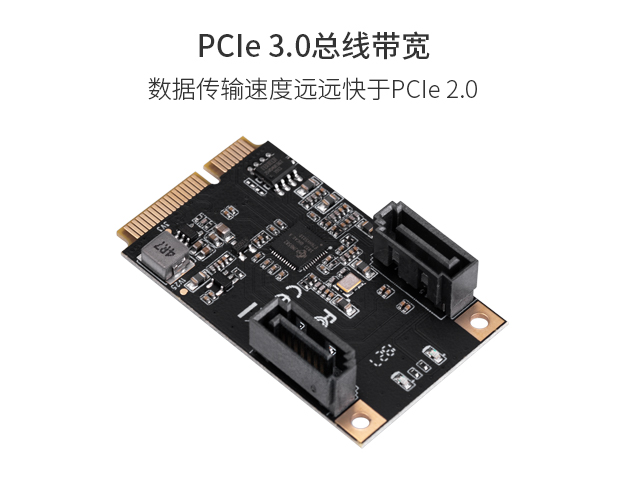

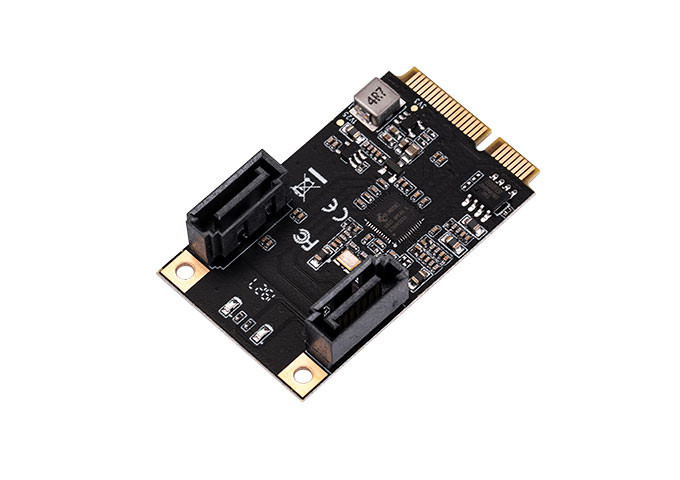

• 1 × Mini PCIe to 2-Port SATA Card
• 1 × User Manual
• 1 × SATA Cable
• 1 × Driver CD
Note: Contents may vary depending on country/market
