Features

•Compliant with PCI Express Base Specification Revision 3.1a

•Compliant with PCI Express M.2 Specification Revision 1.0

•Compliant with Universal Serial Bus 3.2 Revision 1.0

•Support up to PCI Express Gen3 x4

•Support up toUSB3.2 Gen2x2 backward compatible with USB 3.1

•Compliant with USB Type-C specification Release 1.3

•Integrated CC Logic for Type-C application

•Support BOT and UAS Protocol

•Support USB Link power management

•Support USB Hot Plug

•Support Spread Spectrum Clock Control

•Support unmap command set

•Support SCSI vendor specific command set

•Support PCI Express Link power management

•Support NVME power management

•Support NVME: SCSI Translation Revision 1.5

•Support TRIM command set

•Support NVME Error Reporting &Recovery

•S.M.A.R.T drive monitoring

•Compliant with NVM Express Base Specification Revision 1.3c

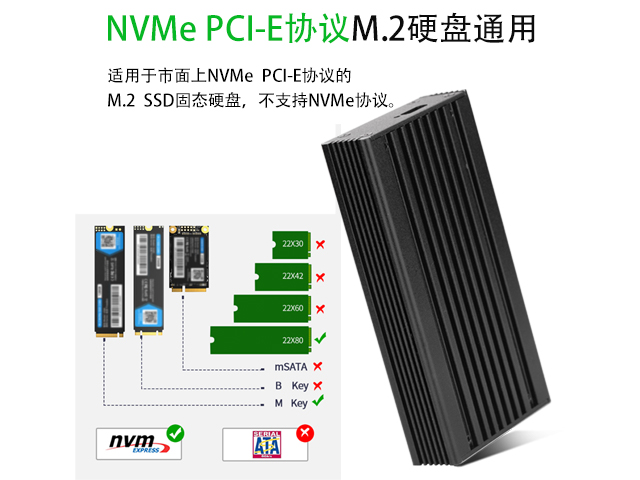

•Supports M.2 card size: 22*80

•Supports M.2 M Key or B+M key Card Type

Note:Support M.2(NGFF) PCIe SSD

The efficiency mainly depends on M.2(NGFF) SSD master IC and the size of the capacity

System Requirements

•Windows Server2008,2012,2016

•Windows 7, 8,10

•Linux, and MAC 10.10.5 or later version

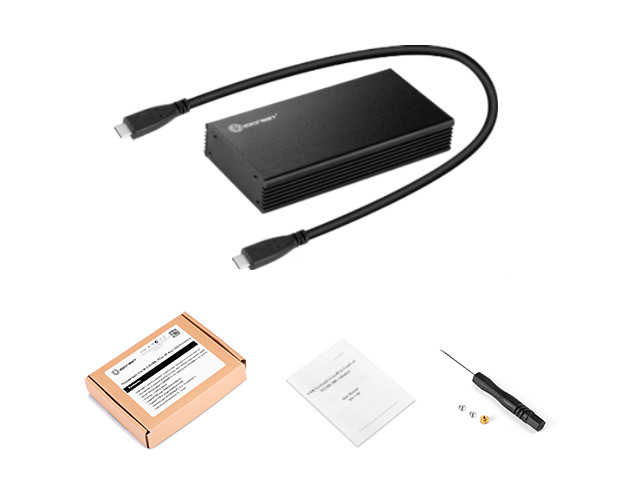

Package Contents

•1 x USB 3.2 Gen 2 to PCIe Gen3x4 NVME Adapter

•1 x User Manual

•1 x TYPE-C to TYPE-C Cable

Note: Contents may vary depending on country and market.
