Feature

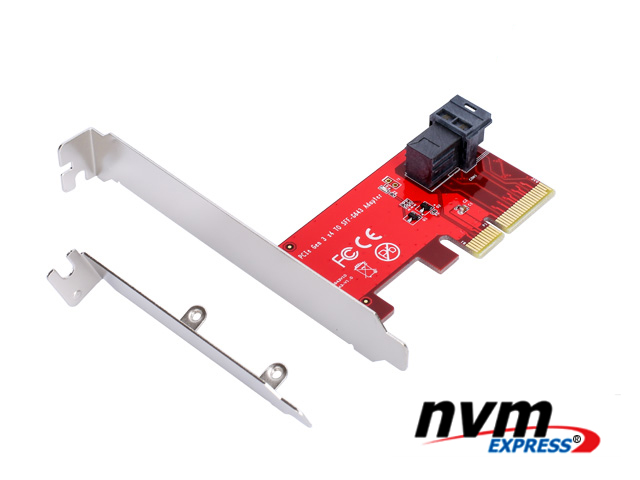

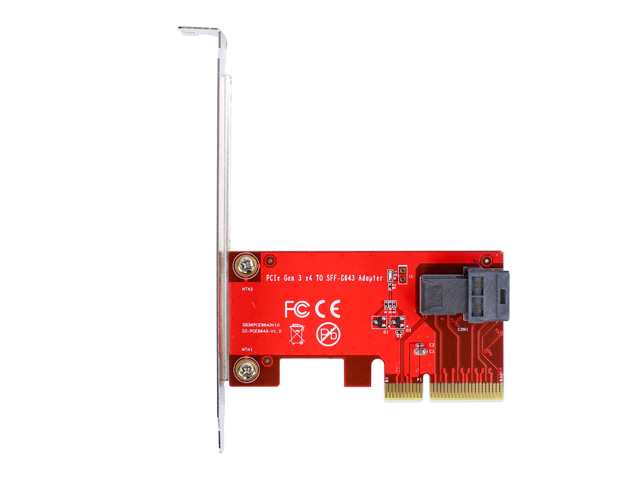

• Buit-in SFF-8643 plug connector
• D1 ON indicate the card adapter Ready

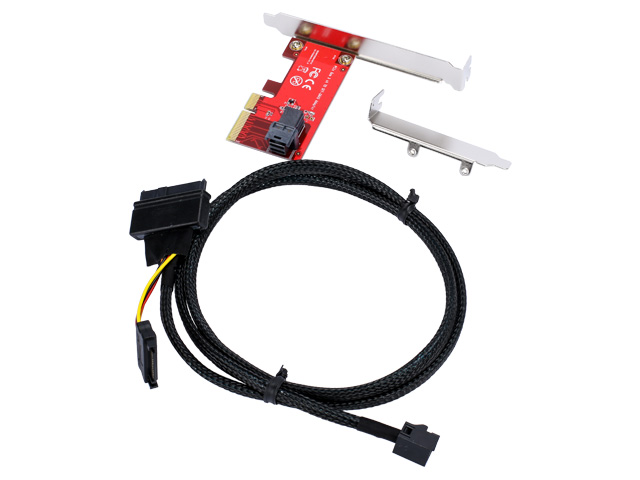

• Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable
Maximum throughput:
• 32 Gbps when installed into a PCIe 3.0 4-lane slot
• 16 Gbps when installed into a PCIe 2.0 4-lane slot
• 8 Gbps when installed into a PCIe 1.0 4-lane slot
• No drivers required for this converter
• Industrial operating temperature: -40 °C to + 85 °C
• OS requirement for NVMe SSD: Windows 10, Windows 7 and Windows server 2008 R2

Specifications
• PCI Express Base Specification Rev 3.0
• SFF -8643 Min SAS HD Version 3.5
• PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
• NVM Express 1.0
• Compatible with PCIe 3.0, 2.0 or 1.0
• Operating Humidity: 5% - 95% (non condensing)
• RoHS compliant

Operating System Support
• Windows 7/8/8.1/10 64 bit
• UEFI 2.3.1 or later
