Feature

•USB to 2 Port Straight-Through RS232 Serial Adapter

•Rugged metal construction

•Wall-mountable

•COM port settings are retained for serial devices plugged into different USB ports and across reboot

•Baud Rate up to 230 Kbps

•Powered by an available USB port

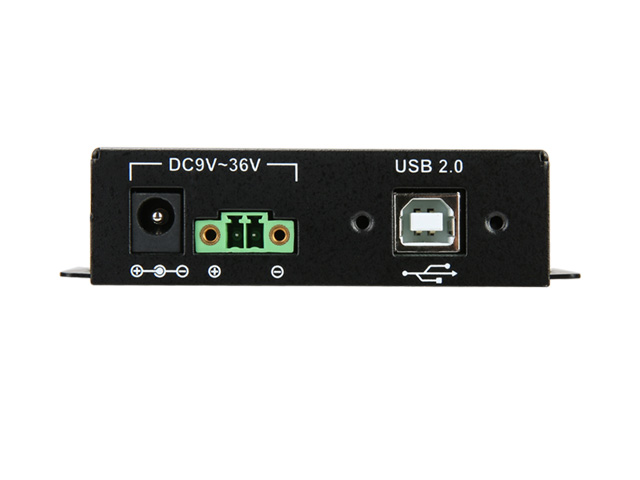

•Optional DC jack (9-36 DC )or terminal block power connections

•Designed to make serial port expansion quick and easy

•Provides dual buffers for upstream and downstream data transfer

•Supports automatic handshake mode

•Enables and disables enumerations

Specifications

•Bus Type: USB 2.0 (4 pin) Female

•Chipset ID: FTDI 3410

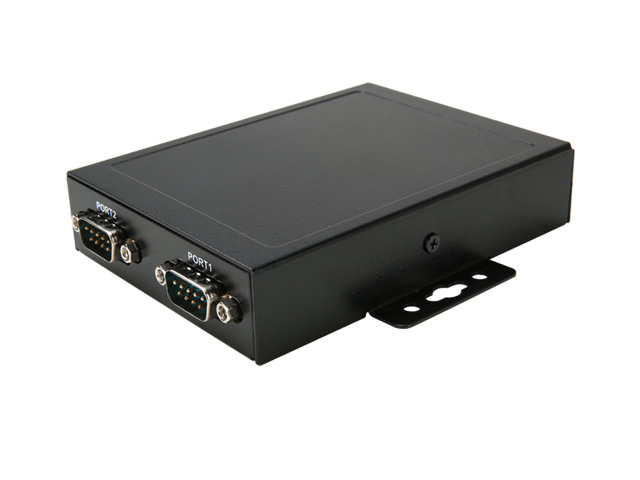

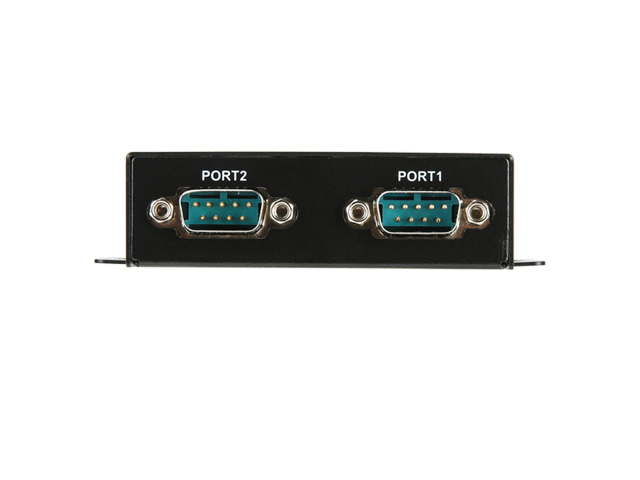

•Number of Ports: 2 -DB-9 (9 pin; D-Sub) Male

•Tranfer Rate: 230Kbps

•Environment: Operating Temperature: -10°C to 80°C

•Storage Temperature: -20°C to 100°C

•OS Compatibility: Windows2000/XP/2003/Vista/7

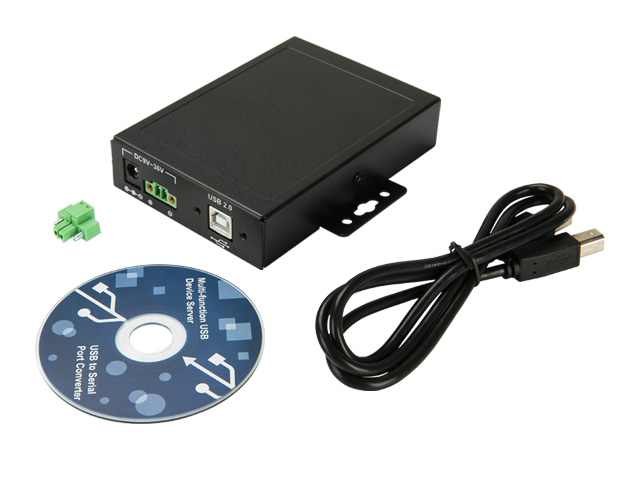

Accessories

1 x USB to Serial Converter

1 x Driver CD

1 x USB Type B to A Cable
