Specifacation
Supports Serial ATA Generation 2 Transfer Rate of 3.0 Gb/s
Supports Serial ATA II: Port Multiplier 1.0 Specifications
Supports Raid Function 0, 1, 5, 10
Compliant with PCI Express Specification Revision 1.0a
1-Lane (x1) PCI Express Connector
Fully Plug & Play Compatible
Integrated Serial ATA Link and PHY Logic
Compliant with Serial ATA 1.0 and Serial ATA II Extensions to Serial ATA 1.0 Specifications
Backward Compatible to SATA 1.0 Specification
Supports Four Independent Serial ATA Channels
Independent Link, Transport, and Data FIFO
Independent Command Fetch, Scatter/Gather, and Command Execution
Supports Legacy Command Queuing (LCQ)
Supports Native Command Queuing (NCQ)
Supports Non-zero Offsets (NCQ)
Supports Out of Order Data Delivery NCQ
Supports FIS-based Switching with Port Multipliers
Package detail
Package Info
Dimension: L 9.25 x W 6.5 x H 1.4 inch
Weight: 0 lb
UPC: 810154012749

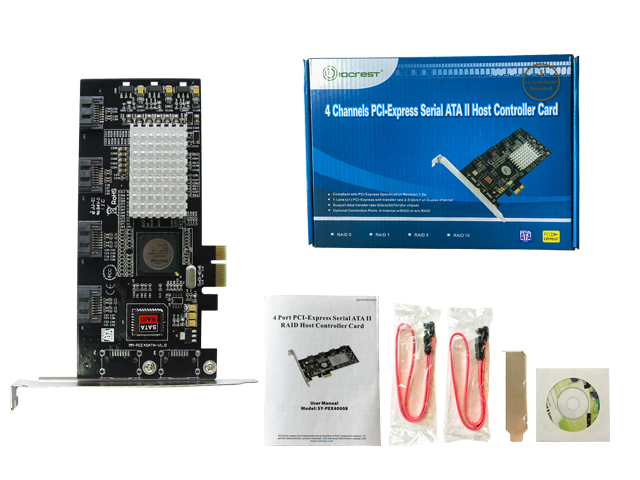

Package Includes

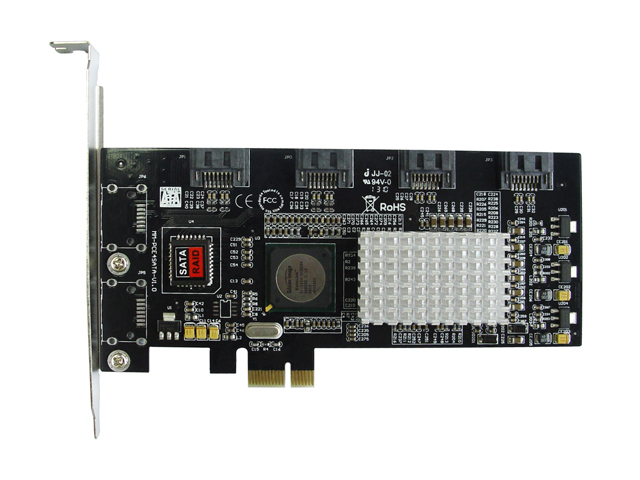

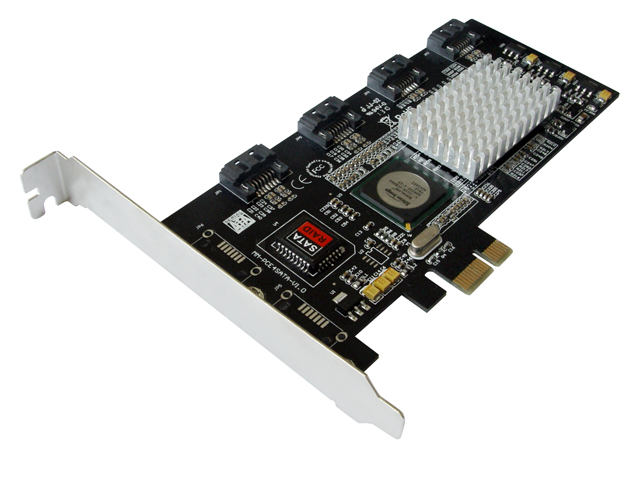

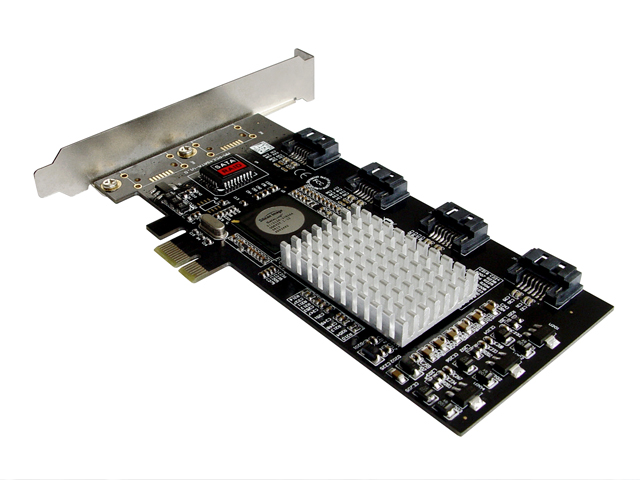

4 channels PCI-Express Serial ATA II Host Controller Card
2x SATA Cables
Driver CD
User Manual
Low Profile Bracket
Software requirement
Windows 8 /7/10/XP/2000
Vista
Mac OS 10.4x
Red Hat Linux 8.0.9.0
SuSE Linux 8.1, 8.2
United Linux 1.0
