Features
1.Standards: conforming to USBV1.0, 1.1 and 2.0
2.USB signals: VCC, DATA+, DATA-, GND and FG
3.RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI
4.Single chip USB to asynchronous serial data transfer interface
5.Support Bits per second Data transfer rates from 300 baud to 921600baud (RS232 ) at TTL levels
6.UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
7.Flow control none,hardware and xon/xoff
8.Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
9.UART signal inversion option
10.USB 2.0 Full Speed capable
11.Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
12.Extended operating temperature range; -40 to 85⁰C
Applications
• USB to UART Cable
• POS Printer Terminal
• Networking System
• Industrial and Power Meter
• USB Bar Code Reader
• USB Digital Camera Interface
• USB Wireless/Wired Modem

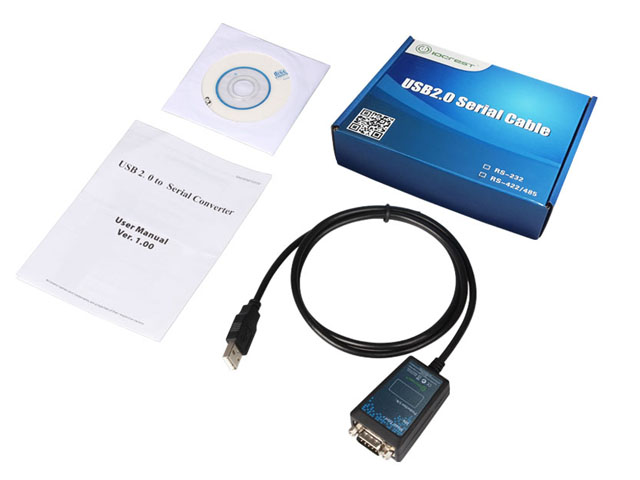

Package details
1×USB 2.0 to Serial Converter
1×User Manual
1×CD Driver
