Description

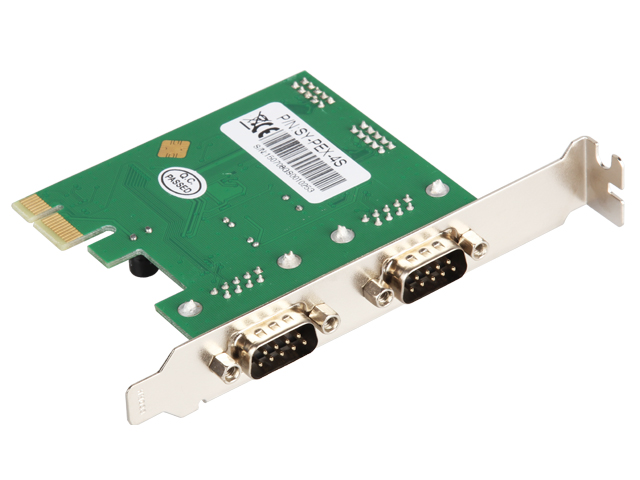

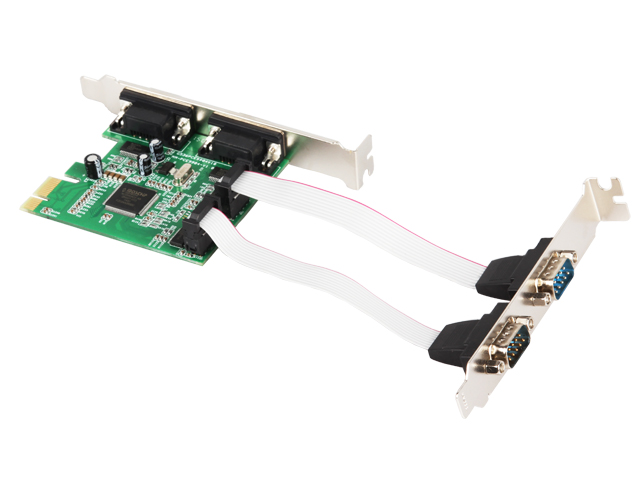

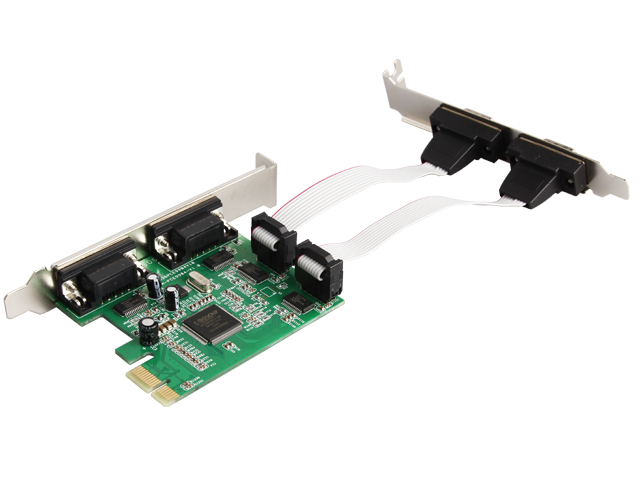

PCI-Express to 4 Serial Expansion Cards
Features
2 serial transmission rate as high as 115.2 k mouth/s
Compatible standard: 16c550 UART
Specification
Chipset: MosChip MCS9904
PCI-Express
Accord with PCI - Express 1.0 a norms
PCI-Express rate 2.5 Gb/s full duplex channel
Supports plug and play
Serial interface：RS-232
Compatible with the standard 16 c550 UART and 256 bytes of sending receiving FIFO
High-speed data transmission rate as high as115.2k/s
Supports RS-232 hardware flow control
Length of data bits：5，6，7，8
Parit：None、even、odd、space、mark
Stop bit：1，2
Driver supports Windows2000/xp/server 2003/xp 64bit/ Vista, Linux, Dos, MAC
System requirements
At least has an available PCI - Express x1 slot in PC

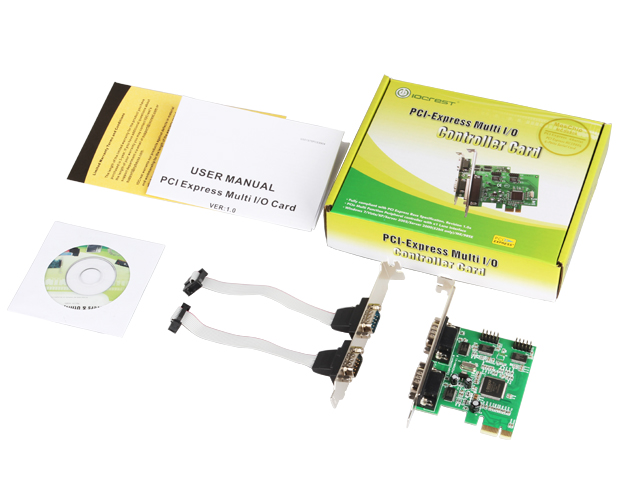

Package includes
1xPCI-Express to 4 serial expansion cards
1xUser manual
1xDriver disc
