Specifacation
Fully Compliant with PCI-Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral Controller with x1 Lane Interface
Support for D1, D2, D3hot and D3cold
Supports PCIe Power Management
Serial Ports:
Support Slow IrDA on All Serial Ports
Serial Port Transceiver Shutdown Supported
Supports Remote Wake-up and Power Management Features
On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
Even, Odd, None, Space & Mark Parity Supported
5, 6, 7, 8 and 9-bit Serial Format Supported
Supports Hardware, Software Flow Control
Full Serial Modem Control
Bi-directional Speeds from 50 bps to 16Mbps/Port
Supports RS232, RS485 & RS422 Modes
16C450/550/Extended 550 Compatible UARTs
IEEE 1284 Parallel Port:
Faster Data Rates up to 1.5Mbps for Parallel Port
Multi-mode IEEE 1284 Compliant Controller (SPP, PS2, EPP, ECP)

Package detail
Dimension: L 6.75 x W 5.5 x H 1.5 inch
Weight: 0 lb
UPC: 810154012664

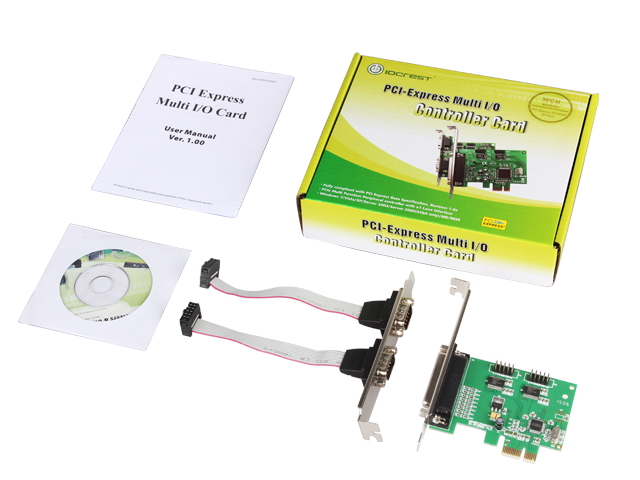

Package Includes

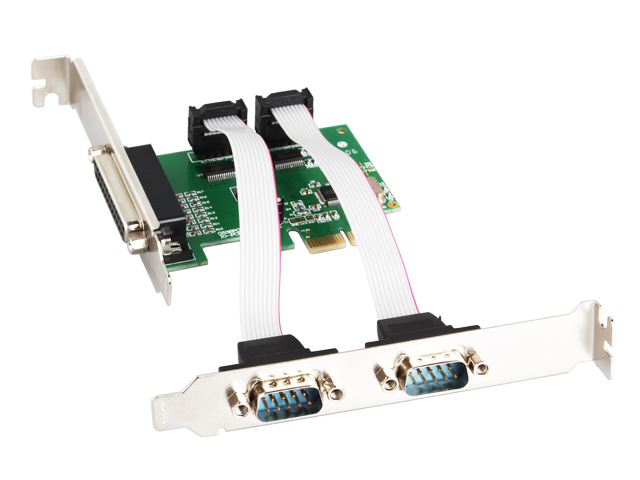

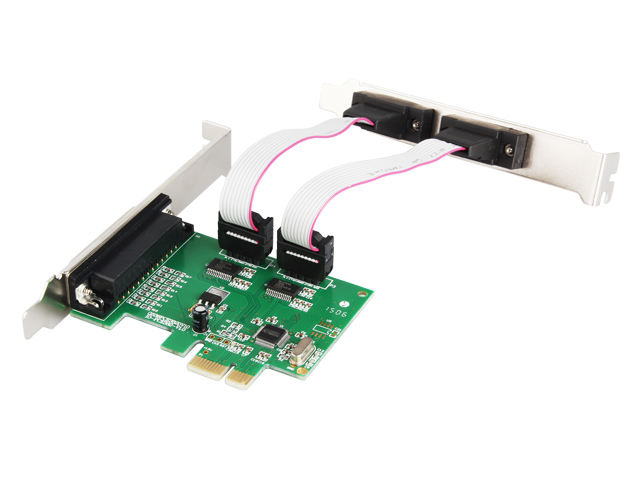

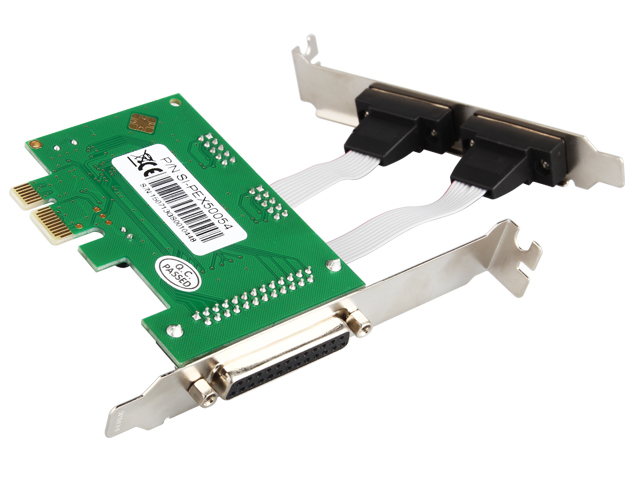

1x2S/1P PCI-Express Serial & Parallel Card
1xParallel Port Bracket
1xCD Driver
1xUser Manual
Software requirement
Windows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Windows10/ 2000
Microsoft 2003 Server
Linux Kernel 2.6.11 & Above
Mac 10.4 & Above
